RM 959.00
SKU: Smooth-5C
Zhiyun Smooth 5 will be everything you love about filming with your smartphone. The 3-axis design allows movements in all angles to be amazingly smooth, even in extreme angles. Intuiitive control panel partnering with ZY Cami makes every shot a breeze toward professional level.
Professional magnetic steel motors with upgraded algorithms and wider phone clamp ensure a safer and easier filmmaking experience. Strong compatibility allows mounting a phone even with wide-angle, telephoto, fisheye and macro lenses.

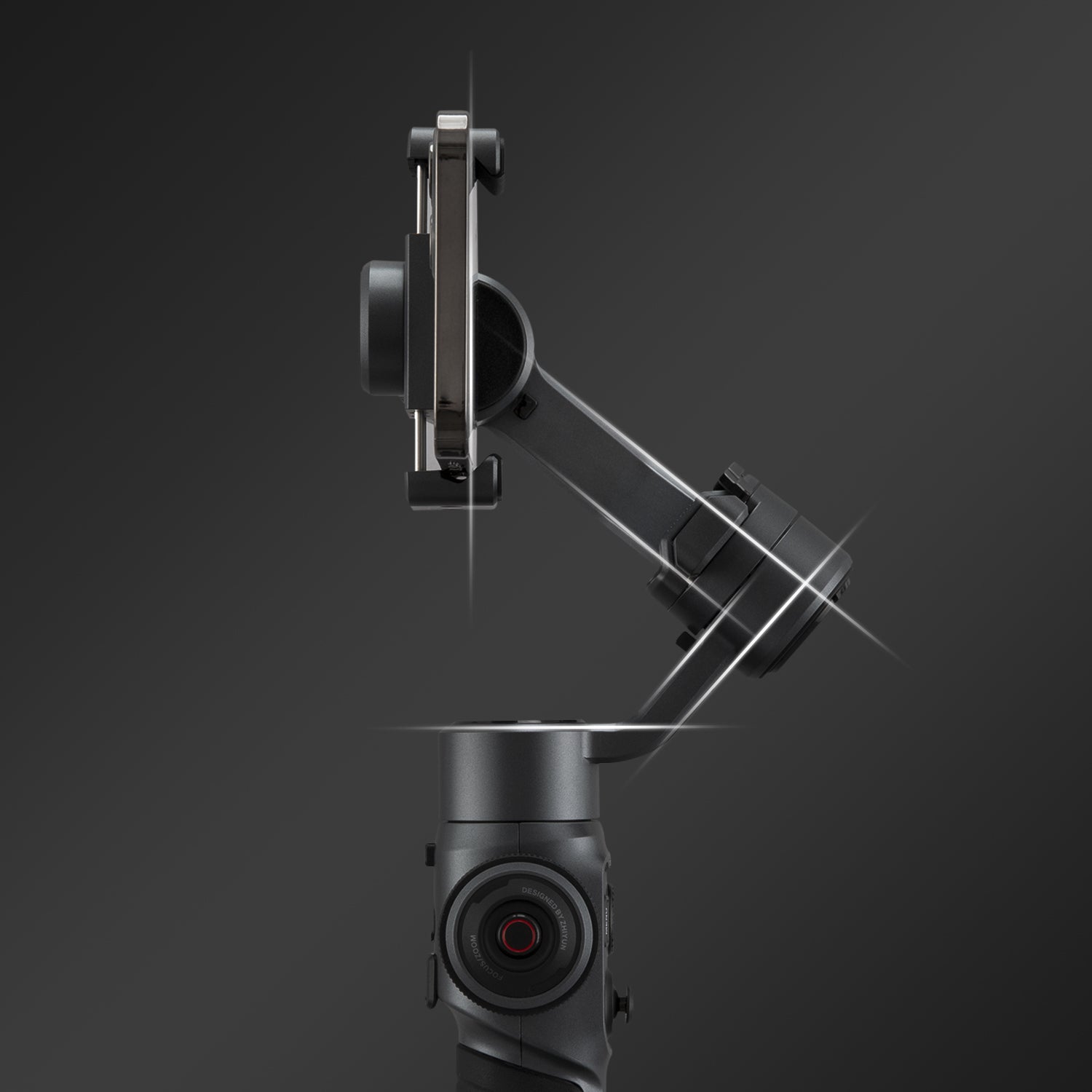

Shrinking 40% of the body, the 3-axis gimbal is a get-up-and-go gear. The motor is at the rear to prevent any blocking while filming, offering free movements from all perspectives even in low and super-wide angles.

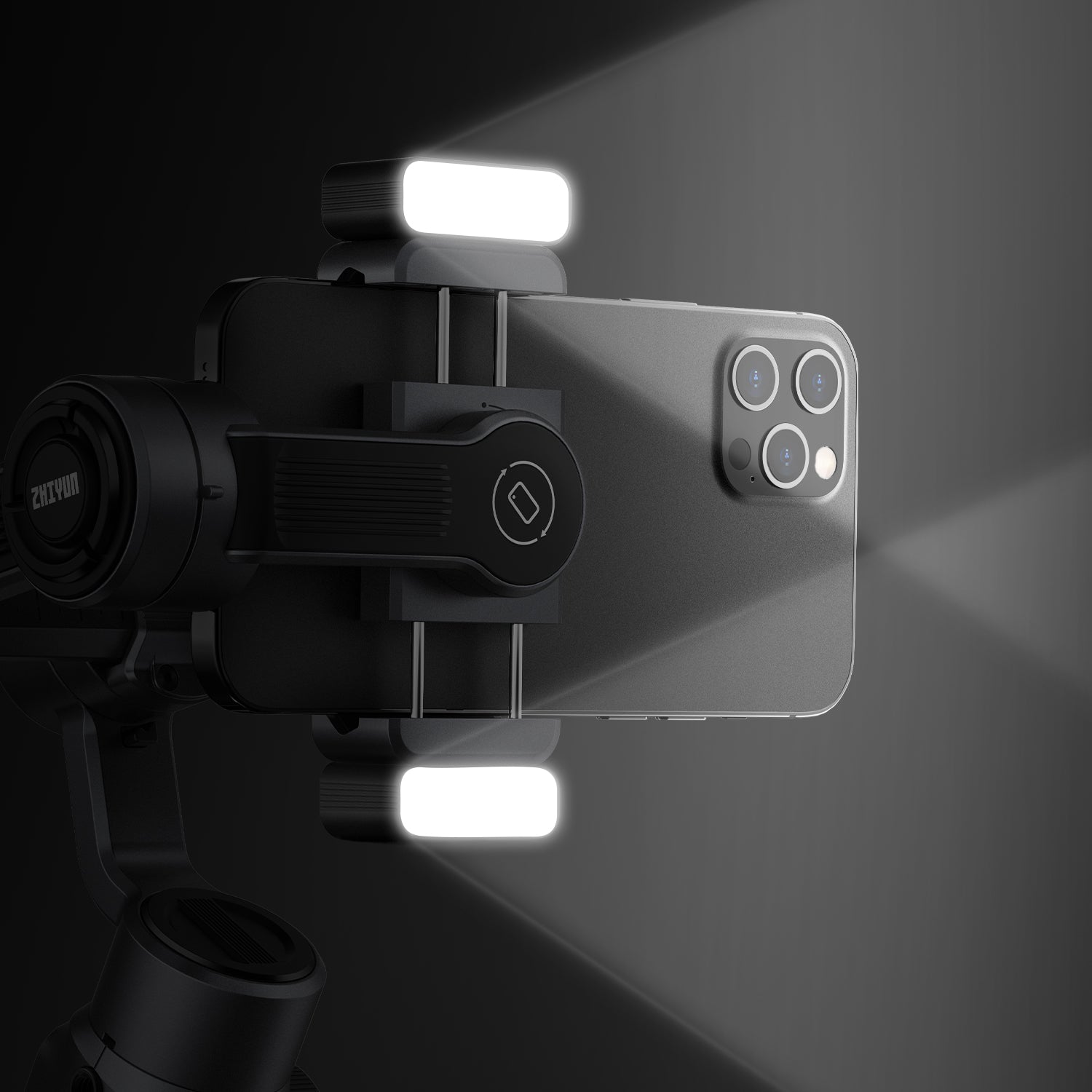

Attach the magnetic fill light for 360° all around lighting on both sides of the new phone clamp, you can enjoy outstanding lighting backed by the 5300K-5700K color temperature. Also, you can change the colors using the light filters.
Peak Brightness: 580 Lumens Color Temperature Level Range: 5300k-5700K CRI: 95
*The magnetic LED fill light needs to be purchased separately. Can be attached with two fill lights at most at the same time.
All your movements and operations are just within your fingertips. Round-cap joystick, optimized control panel and adjustment wheel provide a better experience for users to check and adjust gimbal status while changing camera parameters on the fly.
Achieve Dolly Zoom and Shot Reverse Shot by switching between zoom and focus with one press. Focus and focal length control at ease with control wheel.
You can also achieve dolly zoom via ZY Cami. Follow the instructions to have the cinematic effect generated for you without complex operation.
Craving for unique video creations that stand out? SMART handles all for you. Just a few instructions and gimbal movements, dozens of video templates give you exceptional masterpieces that come with amazing filters, music, special effects and stickers.
Press the button, activate the SmartFollow, and start centering your object. You can also use a gesture to control camera filming/photo-taking and enable face tracking at distance.
Backed by 2600mAh battery, SMOOTH 5 can work up to 12 hrs (tested with the gimbal fully balanced). The charging time is at least 2 hours (measured with a 15W charger)
Note: 4.5 hours test runtime (Under working with the fill light on at the highest brightness level)
TwoWay Charging - SMOOTH-5 can be charged by a portable power bank. Your phone can be charged by the gimbal via Type-C port on tilt axis.
Stabilizer | |
Following Deviation in Static State | Max: ± 0.04° Min: ± 0.01° |
Following Deviation in Motion State | Max: ± 0.3° Standard: ± 0.1° Min: ± 0.05° |
Tilt Mechanical Range | 309° |
Roll Mechanical Range | 300° |
Pan Mechanical Range | 360° |
Battery | |
Operation Voltage | Max: 8.4v Min: 6.5v |
Operation Current | Max: 3000mA Min: 70mA |
Output | 5V, 1A |
Charging Time | 2h (lab data) |
Size & Weight | |
Product Size (W*D*H) | 311*168*52mm |
Net Weight | ~615g/unit |
