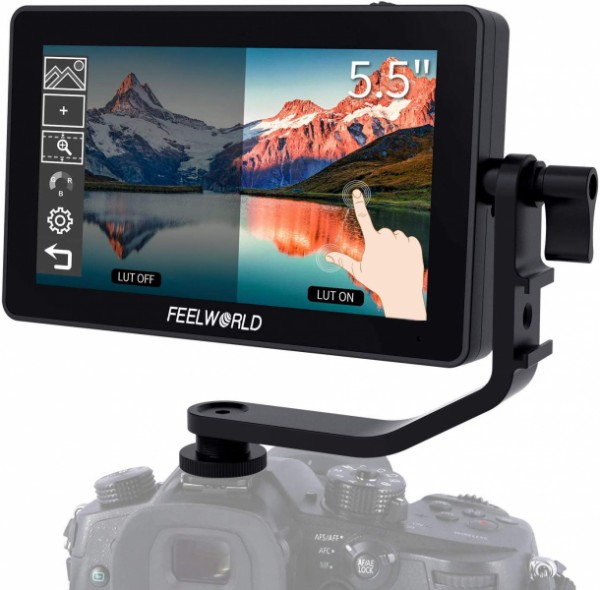

FEELWORLD F6 Plus 5.5 inch DSLR Camera Field Touch Screen Monitor with 3D Lut Small Full HD 1920x1080 IPS Video Peaking Focus Assist 4K HDMI 8.4V

MYR 820.00

Warranty 1 Year By Local Distributor

SKU: FEELOWORLD-F6+

  Add to Cart
  Price Match

  Wishlist



  • F6 Plus Is FEELWORLD Newest Improve User Experience Design



5.5 inch small touch screen fast the setting, and with 3D LUT, lightweight design ideal both for gimbal and camera setups, full HD 1920X1080 resolution, with Rec.709 professional color calibration, accurate color reproduction. 4K HDMI Input/ Output Without Delay. Come with a 360° tilt arm better monitoring angel, instead traditional hot shoe mount. 8.4V DC out, real time power charge for camera. Built in two battery plate: Sony F970, Canon LP-E6.



  • Let Your Video Shooting Become Easier



FEELWORLD has been committed to providing the comprehensive broadcast monitoring and solutions for the professional filmmakers. Whether the upgrade of the excellent display technology from HD to FHD or to UHD 4K resolution, FEELWORLD aims to support the professional creators to obtain the greater benefits and to create more exciting stories, with the most advanced technology to improve the production efficiency.



  • FEELWORLD Monitor is A Must-have Accessory for Your Shooting Setup.



When you’ve put together rigs made up of powerful equipment, you want to be able to see shots that so much work has now gone into getting to that point. No matter the setup, whether it’s a shoulder rig, gimbal, tripod, or handheld, you need a FEELWORLD monitor for all your setups which allow you to see, in perfect definition, make sure your shot in focus and accurate exposure, what you are shooting so that you know that the shot you are working hard to get is truly stellar.



  • Flexible for Your Creative



As a filmmaker you need to pay special attention to the visual aspect in order to capture every moment of emotion. For that reason you can always trust FEELWORLD monitors technology, which allows you to bring your full capacity and creativity taking care of every detail in the most efficient way possible. FEELWORLD monitor helps you to capture those precious moments that you cannot afford to miss.



  • Easy Multi-angle Monitoring



It’s not easy to evaluate your shot solely through your camera’s built-in monitor, especially if the entire unit is constantly rotating on a gimbal/ stabilizer, the camera on crane rig jib, One of the biggest issues when you are doing low-angle/ high angle shot is monitoring what you’re shooting. FEELWORLD monitor is ideal tool for you to monitor the scene since you can install it where you can conveniently see it.



  • Compatible Battery



Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series. Canon LP-E6 (Note battery not include, need purchase sperate)

touch screen camera monitor

Accurately expose and focus every shot.



  • Histogram
  • Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
  • False Colors
  • Zebra Exposure (1%~100% adjustable)
  • Scan Mode (Under Scan, Over Scan)
  • Zoom (100%~300%)
  • Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
  • Pixel to Pixel
  • Center Marker, Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
  • Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
  • Marker Color (red, green, blue, white, black, yellow)
  • Check Field (red, green, blue, gray)
  • Image Flip (H, V, H/V)
  • Image Freeze
  • Color Temperature Adjustment



touch screen camera monitor

focus monitor

5.5 field monitor

Touchscreen Operating Instruction



  • This monitor is a full touch screen monitor with 3D LUT.
  • When the monitor and touch are both on, continuously click the screen twice to enter the main menu.
  • Slip the fingure from the bottom of the screen to enter the shortcut menu.
  • Click any space beside menu to exit the menu.



Peaking Focus Assist

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue, yellow, white according to different tone of the subject.

Professional Color Calibration, Accurate Color Reproduction

FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.

focus monitor

gimbal monitor

wireless system monitor

Better Monitoring Angle, Extention Microphone Mounting



  • Every F6 PLUS monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
  • Allows the F6 PLUS monitor to rotate 360 degrees for viewing convenience
  • Secure and lightweight mounting via shoe mount or 1/4"-20 thread
  • Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.



Flexible Monitoring Both for Camera and Gimbal



  • To convenient the various angles monitoring FEELWORLD F6 PLUS features 3 standard 1/4" mount points (top, bottom, right) for attaching it to cameras and rigs.N
  • ot only you can install it on a monitor through tilt arm, but also you can mount it on a handheld stabilizer or securely attach it to the top of your camera as the ultimate HD viewfinder!
  • If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!



HDMI Output Application

You can connect to wireless transmitter, transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.


FEELWORLD  F6  PLUS  MONITOR  HD  4K  VIDEO
